Facebook Video Ad Sizes in 2026: Every Placement, Length, Codec, and Aspect Ratio

Eleven Facebook video placements. The full 2026 spec table is below, plus the codec rule that silently kills 35% of uploads and the three master cuts that cover every slot. Source: Meta Ads Guide, May 2026.

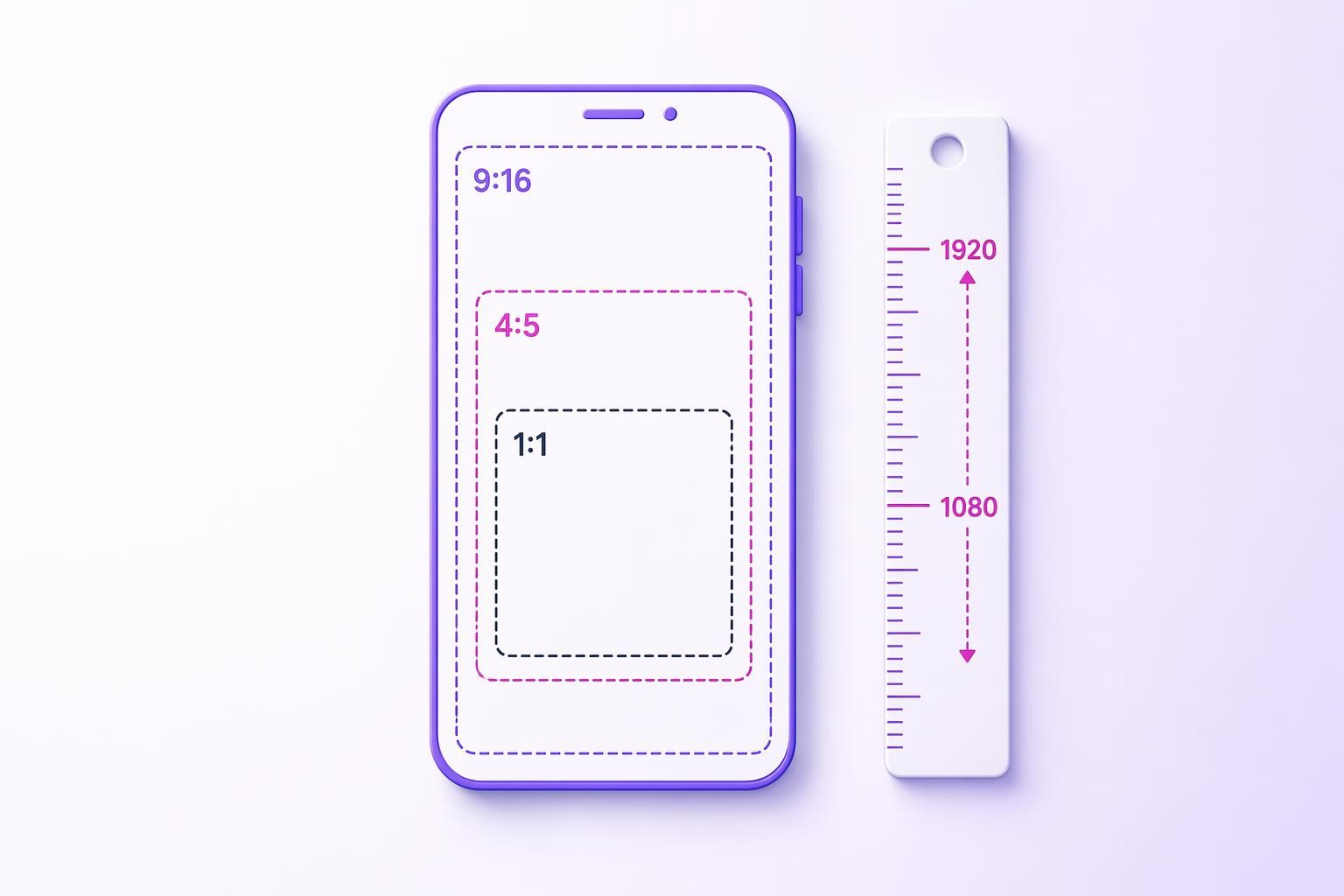

Facebook video ad sizes 2026: every placement, aspect ratio, and length cap visualized

The Complete Facebook Video Ad Spec Table (All 11 Placements)

Source: Meta's Ads Guide for video, May 2026.

Placement	Aspect ratio	Recommended res	Max length	Max file
Facebook Feed	4:5 (or 1:1)	1080x1350	241 min	4 GB
Facebook Stories	9:16	1080x1920	60 sec	4 GB
Facebook Reels	9:16	1080x1920	90 sec	4 GB
Facebook In-Stream	16:9 (or 1:1)	1920x1080	5-15 sec*	4 GB
Facebook Marketplace	1:1	1080x1080	241 min	4 GB
Audience Network	9:16, 16:9, 1:1	1080x1080+	2 min	4 GB
Messenger Stories	9:16	1080x1920	60 sec	4 GB
Messenger Inbox	1:1	1080x1080	241 min	4 GB
Instagram Feed	4:5 (or 1:1)	1080x1350	60 min	4 GB
Instagram Stories	9:16	1080x1920	60 sec	4 GB
Instagram Reels	9:16	1080x1920	90 sec	4 GB

*In-Stream technically allows up to 10 min on mobile, but completion rates collapse past 15 seconds. Treat 5-15 sec as the real cap. Marketplace is 1:1 only (4:5 letterboxes there). Instagram Feed/Stories/Reels mirror their Facebook counterparts (except IG Feed caps at 60 min, not 241).

Universal File Rules and the Silent-Rejection Trap

35% of upload failures trace to unsupported formats like AVI or WMV, and 12% are aspect ratio mismatches outside the 9:16 to 16:9 range (Socialeum 2025). Meta's error message rarely says which.

Upload Safe (green)

Container: MP4, MOV
Video codec: H.264
Audio codec: AAC, 128 kbps stereo
Sample rate: 44.1 kHz
Frame rate: 30 fps (60 fps max)
Color: RGB, progressive scan

Silent Fail or Reject (red)

Containers: AVI, WMV, MKV, FLV
Codecs: H.265, HEVC, VP9
File: over 4 GB (per Accio)
Frame rate: variable
Color: CMYK, interlaced scan
Audio: MP3, WAV (in some containers)

Before-you-click-upload checklist

Container is MP4 or MOV. Re-export from your editor if it is anything else.
Video codec is H.264. If you exported with H.265 or HEVC, the upload either fails or silently strips audio.
Audio codec is AAC at 128 kbps stereo.
File size under 4 GB. Use HandBrake at constant quality 23 or FFmpeg with -crf 23 -preset medium.
Aspect ratio matches the intended placement (4:5 Feed, 9:16 Reels/Stories, 16:9 In-Stream).
Resolution is at least 1080 px on the long edge. Anything lower looks bad on retina screens.
Length under the placement cap. Trim before upload, not in Ads Manager.

Two more rejection triggers beyond format

Copyrighted music or audio

Fix: Use Meta's licensed Sound Collection or platforms like Epidemic Sound. Even royalty-free libraries sometimes trigger false-positive copyright matches.

Health, finance, or claim language without substantiation

Fix: Strip absolute claims ("cures acne," "guaranteed returns"). Use softer framing ("designed to support," "may help"). Have evidence ready in case Meta requests substantiation.

Facebook Feed: Use 4:5, Not 1:1

The most expensive misconfiguration on most ad accounts: Ads Manager defaults Feed to 1:1, but Meta recommends 4:5. Teams ship the default and lose CTR they never measured.

Why 4:5 wins the Feed in 2026:

+18% CTR and -22% CPA vs 1:1 in competitive niches (Adstellar synthesis)
+78% more screen real estate on mobile vs square (Foreplay)
+15% CTR vs landscape 16:9 (Adstellar synthesis)

Facebook Stories: 9:16, Watch the Safe Zone

Two traps. (1) The UI eats ~250 px top and ~340 px bottom (per Foreplay). Text in those bands is invisible. (2) The 60-sec cap is a file limit; Stories auto-advances after 10 sec and splits longer videos into 2-3 cards. Treat Stories as a 6-10 sec medium.

Facebook Reels: 9:16, 90 Seconds

Why Reels prints money when you get it right:

+35% CTR vs square Feed placements (Adstellar 2026)
+23% completion rate vs square (same source)
CPMs 10-30% lower than square Feed (Adstellar synthesis)
+12% conversion lift on vertical-with-sound vs silent Feed (Adstellar)

Facebook In-Stream: 16:9, 5-Sec Hook

Only Facebook placement with audio on by default and a 5-sec skip button. Your hook isn't 3 seconds, it's 5. Useful range: 6-15 sec. The 6-sec bumper beats 15-30 sec on brand metrics (Designsfirm 2026).

Length Sweet Spots

Length matters as much as spec. Sweet spot: 15-30 sec for Feed, 6-15 sec for In-Stream, sub-30 sec for Reels. Hook rate (3-sec plays / impressions) above 25% is acceptable; 30%+ is top-performing.

Captions

85% of Facebook video plays silent (Digiday). Captions lift view time 12% per a Facebook study (IdeaRocket summary). Burn them into the frame; Meta's auto-caption is English-only and inaccurate. Rules: white text + black outline, two lines max, sync to spoken audio at the word level, stay inside the 9:16 middle-60% safe zone.

One Master, Three Cuts

Shoot at 9:16, the largest canvas. Crop down, never up. Keep logos, faces, product, and captions inside the 4:5 center safe zone (1080x1350). Outside that zone gets cropped on Feed.

Export 3 cuts from the same master

9:16 at 1080x1920 for Reels and Stories (full master)
4:5 at 1080x1350 for Feed (center crop)
1:1 at 1080x1080 for Marketplace + In-Stream backup (further crop)

Then trim 3 length variants from each cut

6 sec bumper for In-Stream and awareness
15 sec full ad for Feed and Reels (sweet spot)
30 sec consideration cut for Stories and retargeting

That is 9 final assets (3 cuts x 3 lengths) from one shoot, all eligible for a single Advantage+ campaign.

Working with a static image instead of video?

Video isn't the only thing that needs these four ratios. The static image creatives, thumbnails, and companion feed ads running alongside your video need the same 1:1, 4:5, 9:16, and 16:9 cuts. The free Meta Ad Resizer reframes one ad image into every placement, extending the background with AI to fill the new shape instead of cropping or stretching, so the subject, headline, and CTA stay intact. Images only, not video files.

Skip the manual cropping. Generate all 3 aspect ratios at once.

AdMakeAI's Video Set Studio takes one product and ships a batch of cuts: 9:16 Reels, 4:5 Feed, 1:1 Marketplace. Same hook, same script, three placements, ready to upload. No editor.

Open Video Set Studio

Frequently Asked Questions

Six most common causes: wrong codec (H.265 instead of H.264), file over 4 GB, aspect ratio mismatch with placement, resolution under 1080 px, length over the placement cap, copyrighted audio. Roughly 35% of upload failures trace to format and codec issues, 12% to aspect ratio.
